UML Diagrams¶

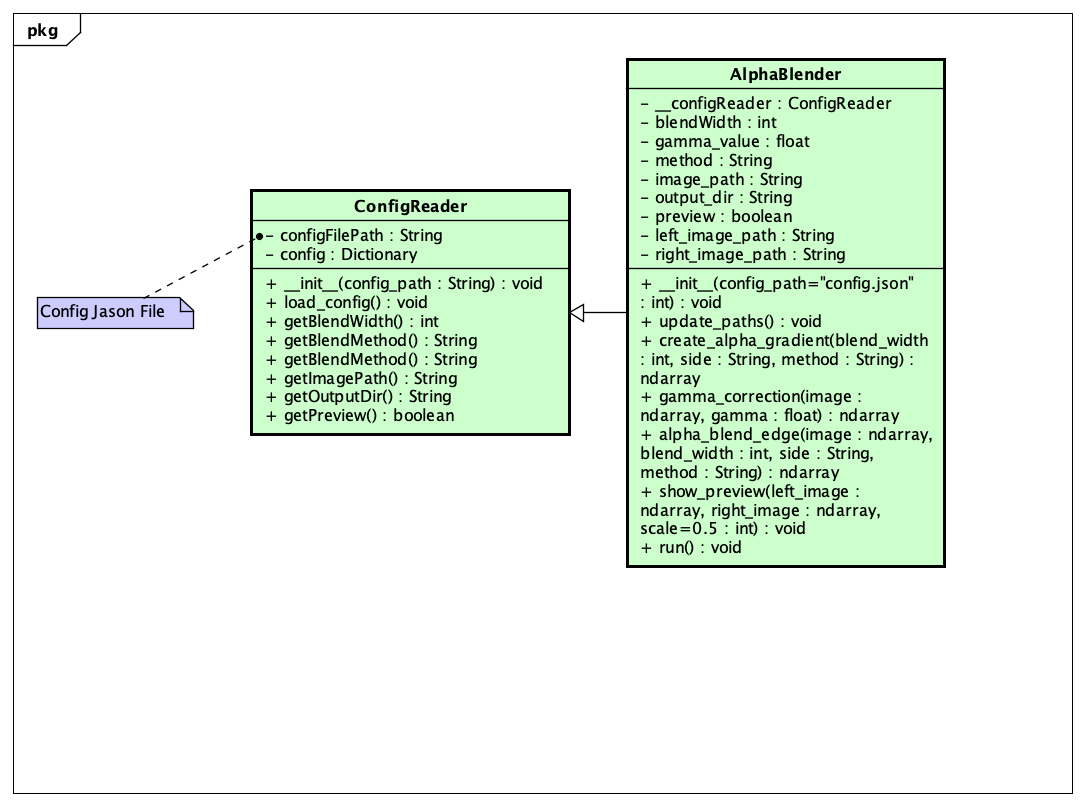

Below are the class diagram representing the main components of the system:

Files (4)

ClassDiagram1.png (70.9 KB) ClassDiagram1.png		Jordan Keiwein LAY, 10/30/2025 01:40 PM
ClassDiagram2.png (50.8 KB) ClassDiagram2.png		Jordan Keiwein LAY, 10/30/2025 01:40 PM
input_updated.png (85.3 KB) input_updated.png		Zhi Jie YEW, 11/06/2025 02:54 PM
input_final.png (198 KB) input_final.png		Anderson PHILLIP, 11/13/2025 01:26 PM
