UML Diagrams

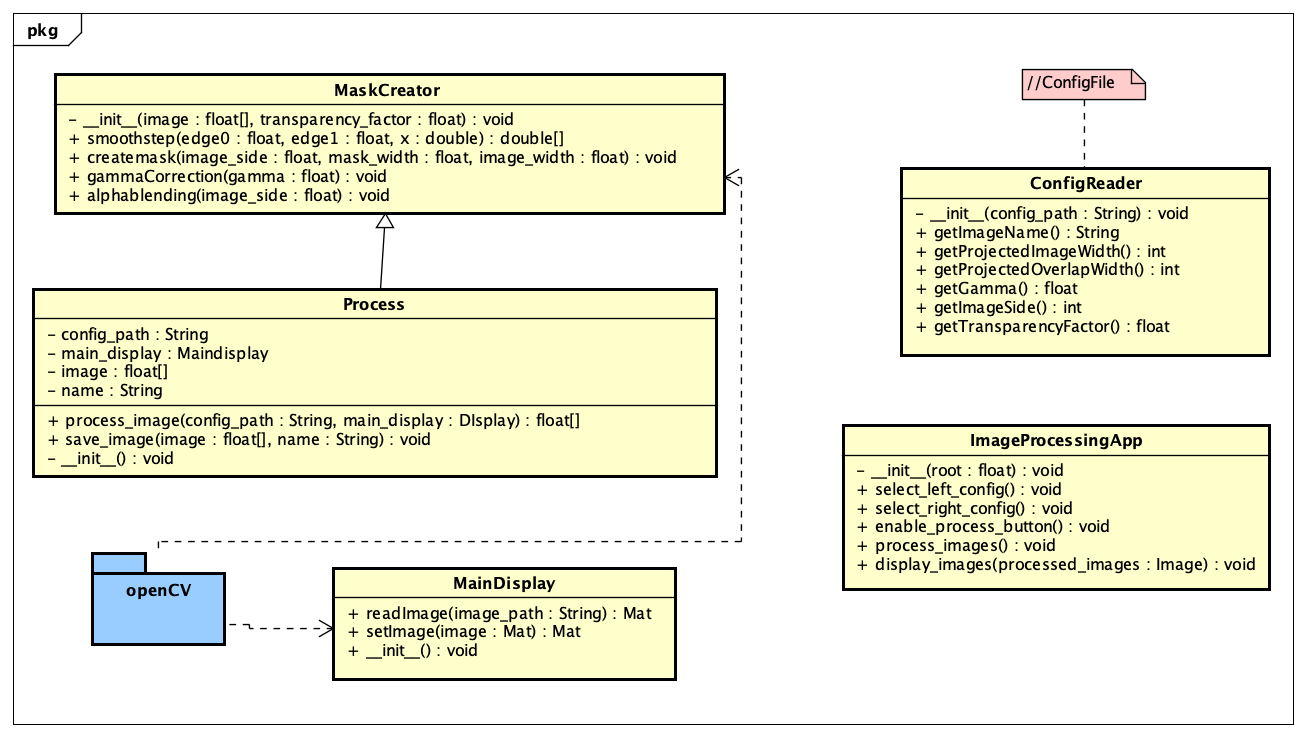

Project UML Diagram

UML Diagram Classes Description

Classes¶

1. ConfigReader

○ Attributes:
     ■ config_path (str): The path to the configuration file.
     ■ config_parser (ConfigParser): An instance of a configuration parser.

○ Methods:
     ■ init(self, config_path=None, configName=None): Constructor to initialize with an optional config path.
     ■ getImageName(): Returns the image name.
     ■ getProjectedOverlayAlphaWidth(): Returns the width of the projected overlay alpha.
     ■ getProjectedImageWidth(): Returns the projected image width.
     ■ getTransparencyFactor(): Returns the transparency factor as a float.
     ■ saveConfig(path): Saves the configuration to the specified path.
     ■ getImageSide(): Gets the side of the image.
     ■ setParameters(parameters): Sets parameters for the configuration.
     ■ getGamma(): Returns the gamma value.

2. ProcessImage

○ Methods:
     ■ processImage(image_path, params, main_display): Processes the image located at image_path with specified params, using MainDisplay instance for display
       purposes.

3. MainDisplay

○ Methods:
     ■ readImage(image_path): Reads an image from the specified path and returns it as an ndarray.
     ■ setImage(image): Sets the image to display as an ndarray.

4. MaskCreator

○ Attributes:
     ■ _image (ndarray): Stores the original image.
     ■ _alpha_gradient (ndarray): Stores the alpha gradient.
     ■ _gamma_corrected (ndarray): Holds the gamma-corrected version of the image.
     ■ _mask (int): Represents the mask value.
     ■ transparency_factor (float): Factor controlling the transparency.
     ■ result_image (ndarray): Holds the result after processing.

○ Methods:
     ■ init(_image, transparency_factor): Initializes with an image and transparency factor.
     ■ createMask(image_side, mask_width, image_width): Creates a mask for the specified image side and dimensions.
     ■ smoothStep(edge0, edge1, x): Returns a smooth transition between two edges.
     ■ gammaCorrection(gamma): Applies gamma correction.
     ■ alphaBlending(image_side): Performs alpha blending for the specified side.

5. ImageProcessingApp

○ Attributes:
     ■ left_image_path and right_image_path (str): Paths to the left and right images.
     ■ left_params and right_params (dict): Parameters for left and right images.
     ■ processed_images (dict): Dictionary to store processed images.
     ■ notebook (Notebook), tab_left, tab_right, tab_settings, tab_preview (Frame): UI components.
     ■ process_button (Button), progress_bar (Progressbar): UI elements for processing and progress indication.
     ■ left_image_label, right_image_label, original_image_label, processed_image_label (Label): Labels for displaying images.

○ Methods:
     ■ init(root): Constructor to initialize the application with a root UI element.
     ■ setupLeftTab(), setupRightTab(), setupSettingsTab(), setupPreviewTab(): Methods for setting up respective tabs in the UI.
     ■ selectLeftImage(): Allows selection of the left image.
     ■ saveConfiguration(), loadConfiguration(): Methods to save and load configuration.
     ■ processAndSave(): Processes and saves the image.
     ■ displayPreview(): Displays a preview of the processed images.
     ■ displayImage(processedImages): Displays an image from processed images.

Relationships¶

● ImageProcessingApp is the main application class and interacts with ConfigReader, ProcessImage, and MainDisplay classes.
● ConfigReader provides configuration details to ImageProcessingApp.
● ProcessImage uses MainDisplay to load and display images, possibly utilizing MaskCreator for mask and blending operations.
● MaskCreator handles the creation of masks and alpha blending, which may be used by ProcessImage to prepare images for display in MainDisplay.
