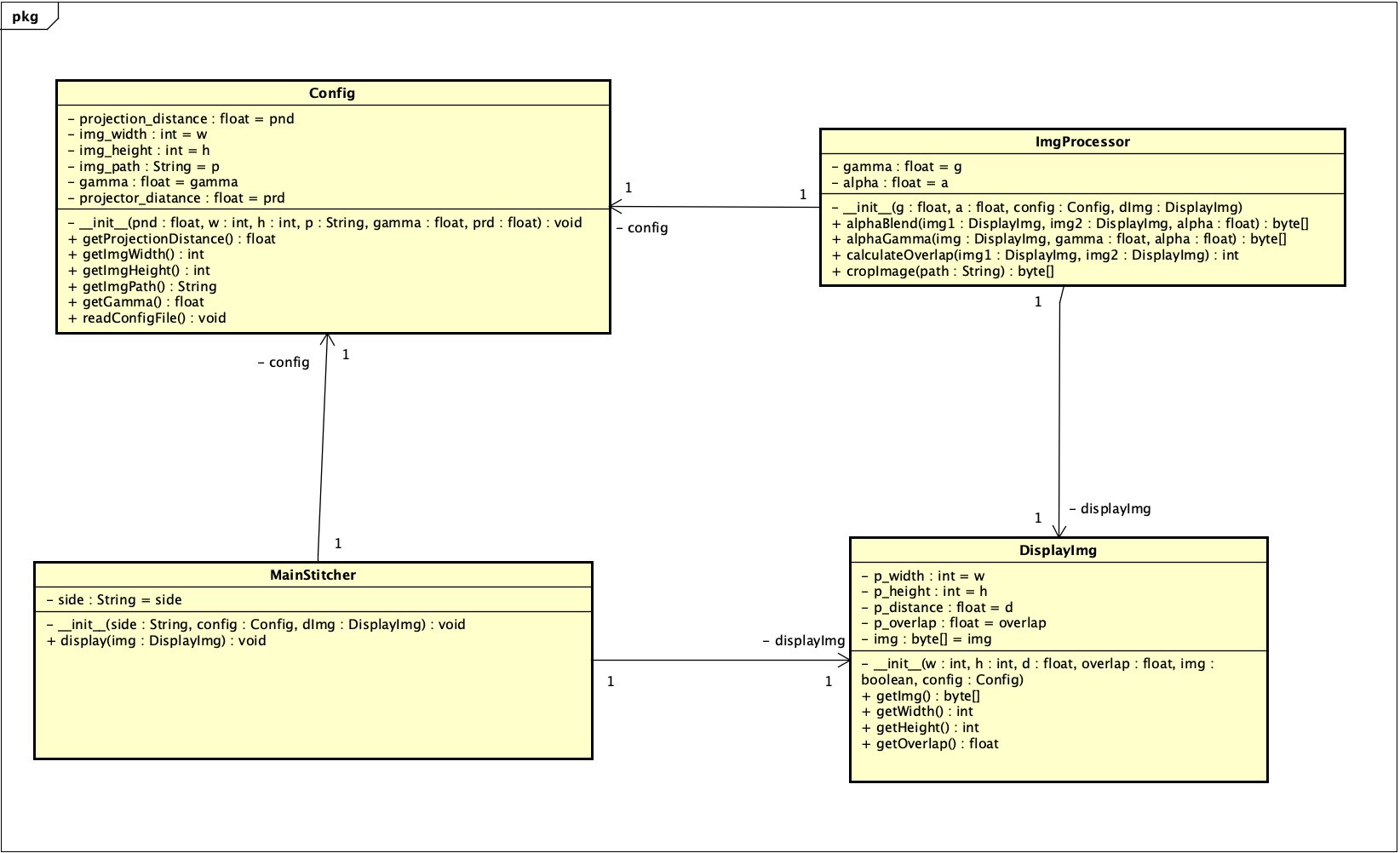

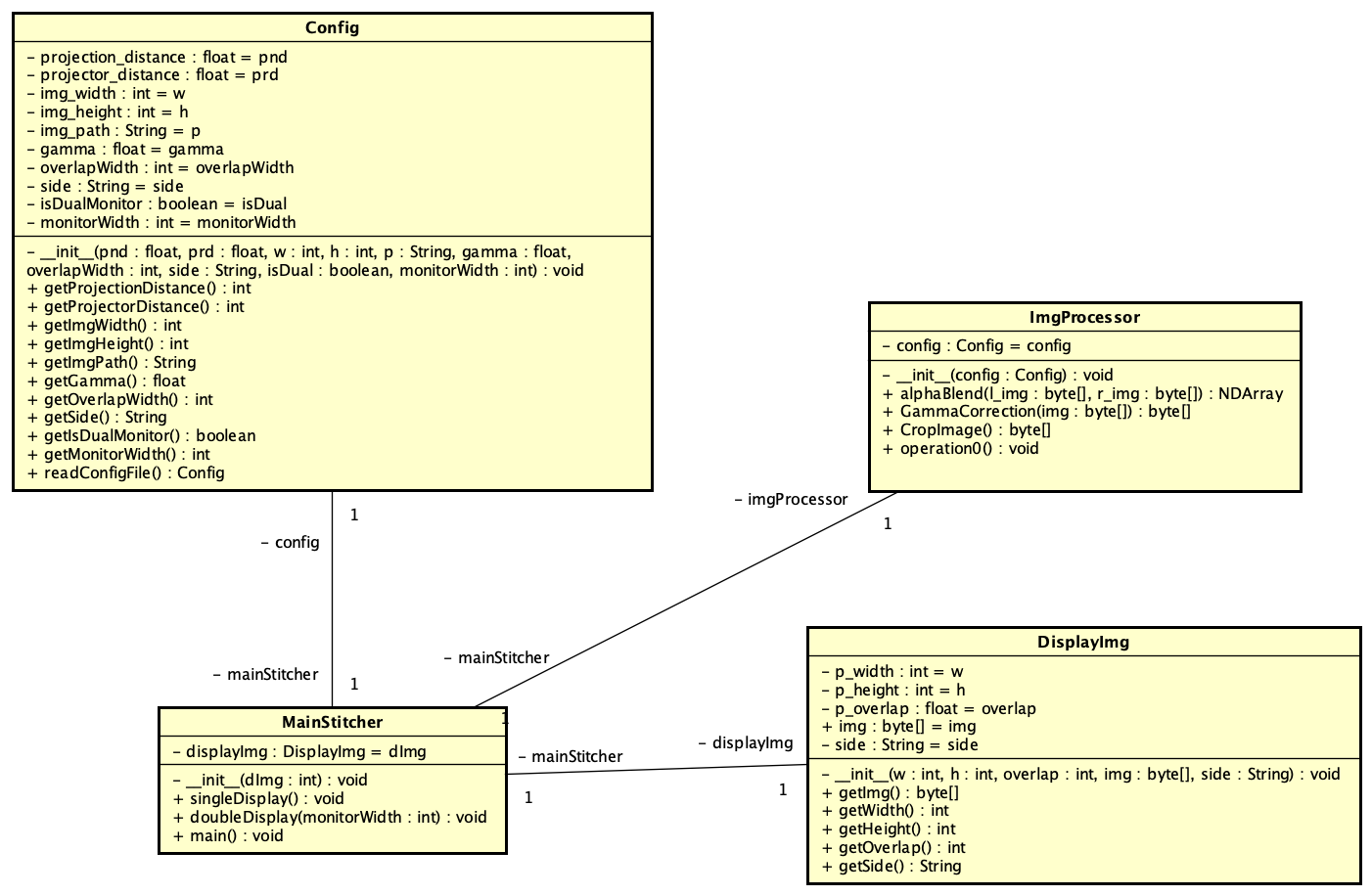

UML Diagram¶

Wiki | About_Us | Project_Overview | UML_Diagram | Codes

1. Config Class¶

Represents configuration settings for image processing and display.

Attributes:¶

- projection_distance: float : The distance of the projector.

- projector_distance: float = prd : Alias for projection_distance .

- img_width: int : Width of the image.

- img_height: int : Height of the image.

- img_path: String : Path to the image file.

- gamma: float : Gamma value for image correction.

- overlapWidth: int : Overlap width between two projected images.

- side: String : The side (e.g., left or right) of the image projection.

- isDualMonitor: boolean : Indicates if dual monitors are being used.

- monitorWidth: int : Width of the monitor.

Functions:
- init(...) : Constructor to initialize configuration parameters such as projection distance, image dimensions, overlap width, etc.¶

- getProjectionDistance(): float : Returns the projection distance.

- getImgWidth(): int : Returns the width of the image.

- getImgHeight(): int : Returns the height of the image.

- getImgPath(): String : Returns the path of the image.

- getGamma(): float : Returns the gamma value.

- getOverlapWidth(): int : Returns the overlap width.

- getSide(): String : Returns the side (e.g., "left" or "right").

- getIsDualMonitor(): boolean : Indicates if dual monitors are used.

- getMonitorWidth(): int : Returns the width of the monitor.

- readConfigFile(): Config : Reads configuration details from a file and returns a Config object.

2. ImgProcessor Class¶

Handles image processing tasks like blending, gamma correction, and cropping.

Attributes:¶

- config: Config : Holds a reference to a Config object for accessing settings.

Functions:¶

- init(config: Config): void: Constructor to initialize the ImgProcessor with a Config object.

- alphaBlend(l_img: byte[], r_img: byte[]): NDArray : Blends two images (left and right) and returns the result as an array.

- GammaCorrection(img: byte[]): byte[]: Applies gamma correction to the given image and returns the corrected image.

- CropImage(): byte[] : Crops the image as per configuration and returns the cropped image.

- operation0(): void : A placeholder method for any additional operation (not detailed in the diagram).

3. DisplayImg Class¶

Represents an image to be displayed, with attributes like width, height, overlap, and side.

Attributes:¶

- p_width: int : Width of the image.

- p_height: int : Height of the image.

- p_overlap: float : Overlap area of the image.

- img: byte[] : The image data in byte format.

- side: String : The side (e.g., "left" or "right") where the image is displayed.

Functions:¶

- init(w: int, h: int, overlap: float, img: byte[], side: String): void : Constructor to initialize the image dimensions, overlap, and side.

- getImg(): byte[] : Returns the image data.

- getWidth(): int : Returns the width of the image.

- getHeight(): int : Returns the height of the image.

- getOverlap(): int : Returns the overlap area.

- getSide(): String : Returns the side of the image.

4. MainStitcher Class¶

Main controller class for image stitching and display.

Attributes:¶

- displayImg: DisplayImg : Holds a reference to a DisplayImg object for managing image display.

Functions:¶

- init(dlImg: int): void : Constructor to initialize the main stitcher with a DisplayImg object.

- singleDisplay(): void : Manages the display of a single image.

- doubleDisplay(monitorWidth: int): void : Manages the display of two images, considering the monitor width.

- main(): void : The main method that runs the entire program workflow.

Summary of Interactions:¶

- The Config class provides settings to other classes ( ImgProcessor and MainStitcher ).

- The ImgProcessor uses Config to process images.

- The DisplayImg class stores the image data and provides its properties to MainStitcher .

- The MainStitcher orchestrates the overall workflow, including image stitching and display management.
